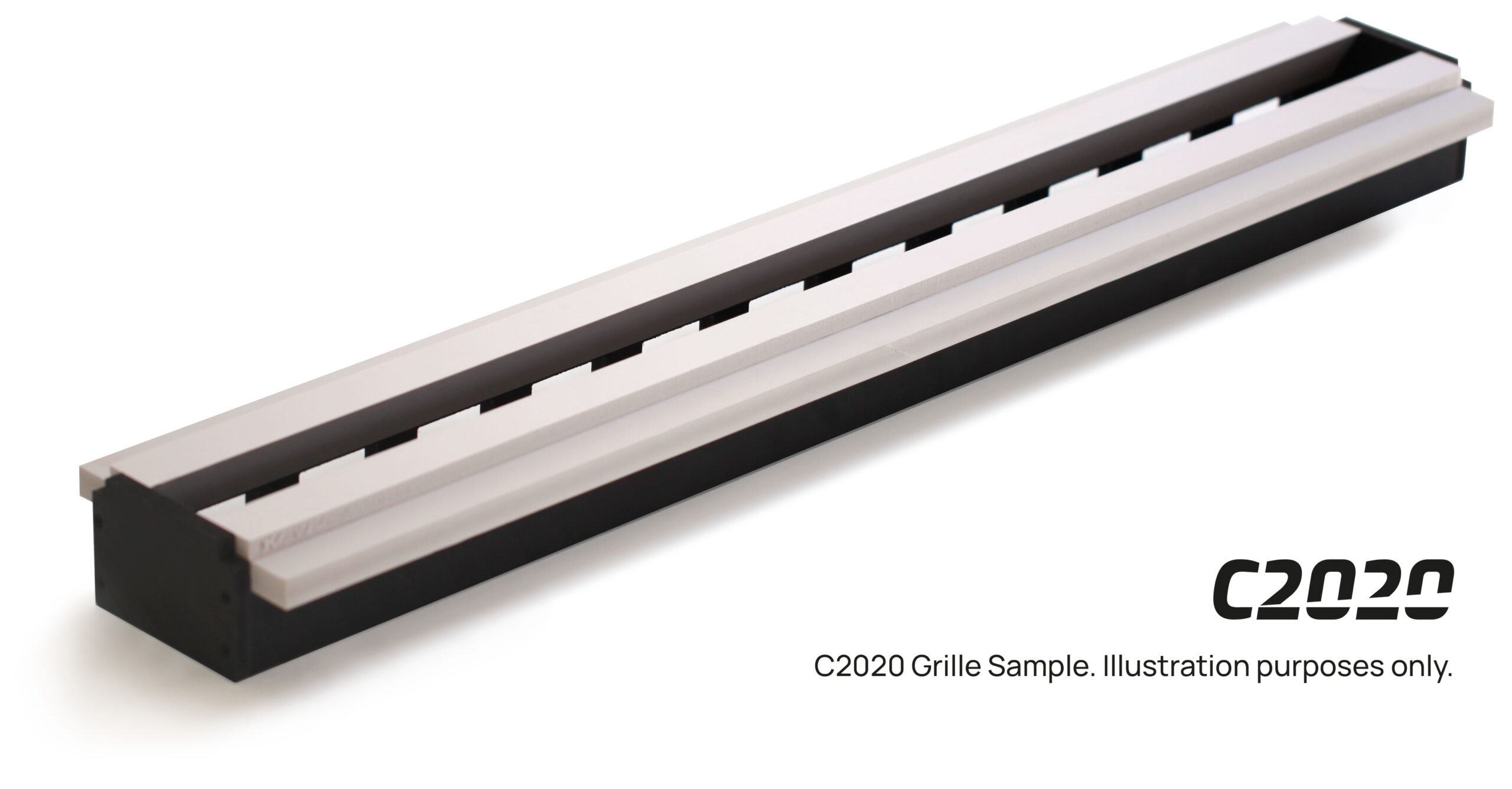

Seamless, Return Grille
The C2020 Seamless is the so-called Return Grille, it has a smooth, innovated and refined appearance. Width sizes are between 20mm – 65mm.
It responds to modern aesthetic trends with new innovative ways of support which is their special design. They have the property of not being easily noticed in the space. Its appearance is ideal for architectural applications. You will have an exceptional appearance with a combination of efficient and high performance for any room.
The available fixed length sizes are:
500mm, 1000mm, 1500mm, 2000mm, 2500mm, 3000mm with the possibility of connecting pieces for unlimited length.

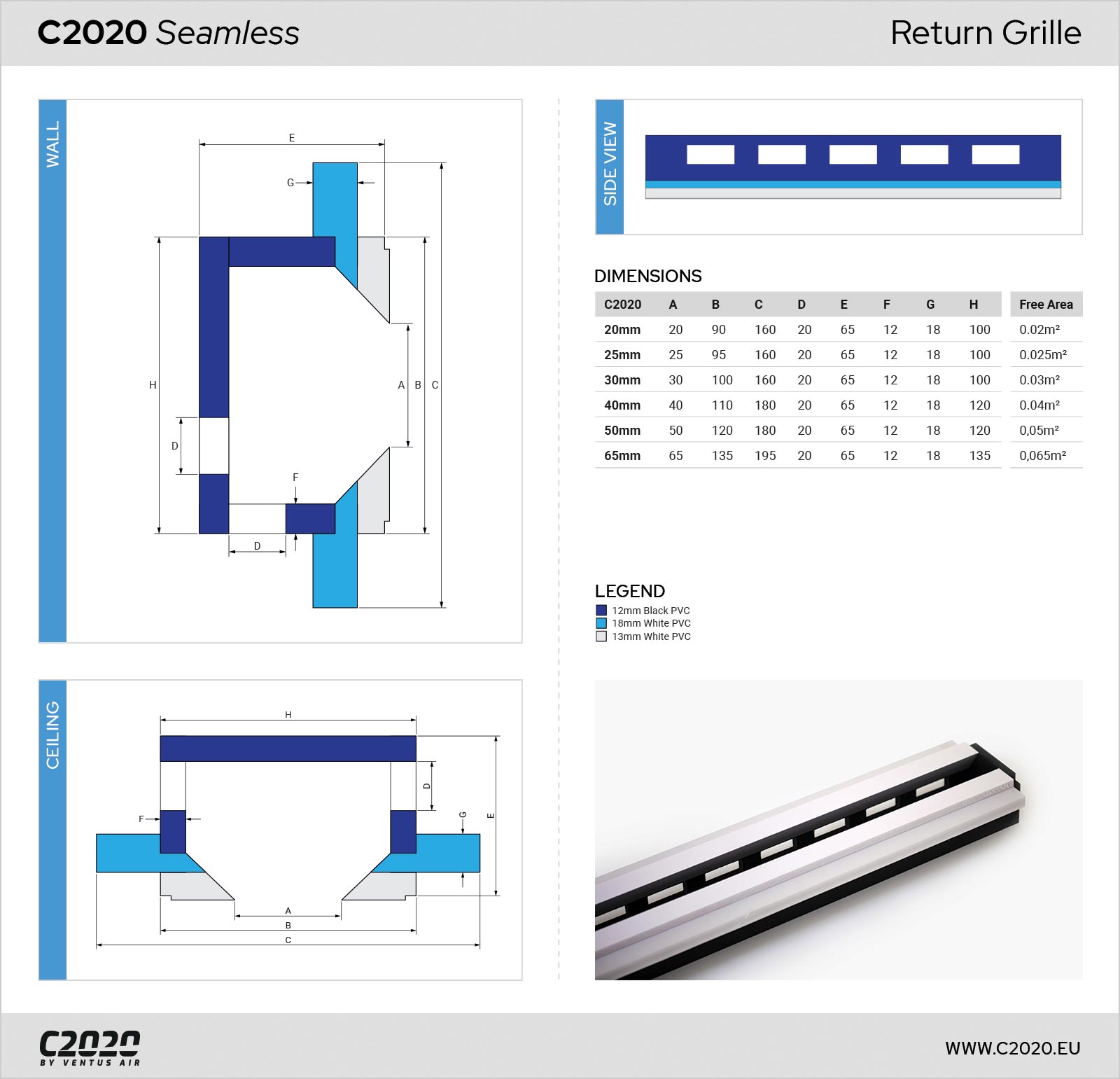

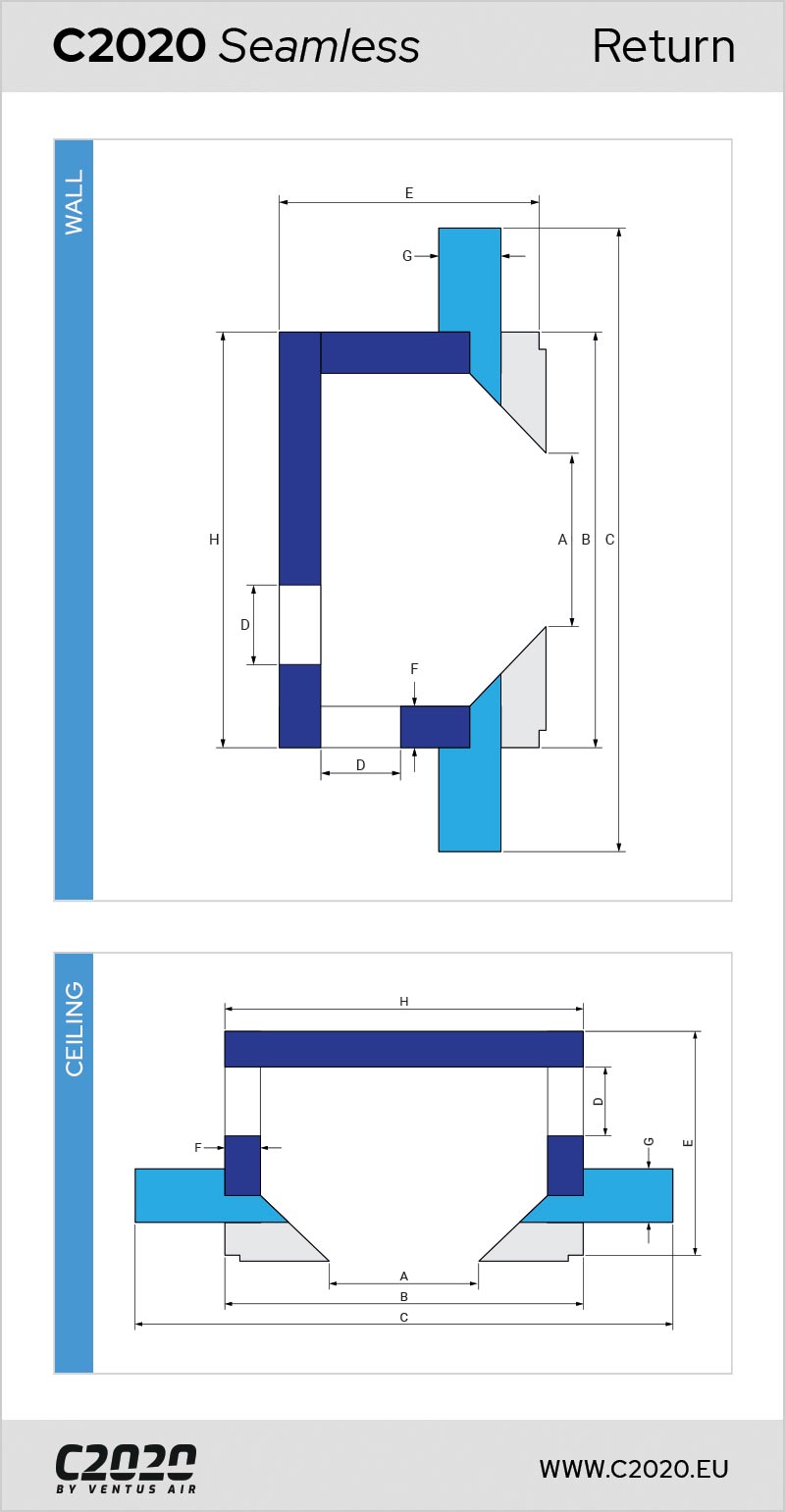

Dimensions
| C2020 | A | B | C | D | E | F | G | H | Free Area |
|---|---|---|---|---|---|---|---|---|---|
| 20mm | 20 | 90 | 160 | 20 | 65 | 12 | 18 | 100 | 0.02m² |
| 25mm | 25 | 95 | 160 | 20 | 65 | 12 | 18 | 100 | 0.025m² |
| 30mm | 30 | 100 | 160 | 20 | 65 | 12 | 18 | 100 | 0.03m² |
| 40mm | 40 | 110 | 180 | 20 | 65 | 12 | 18 | 120 | 0.04m² |
| 50mm | 50 | 120 | 180 | 20 | 65 | 12 | 18 | 120 | 0,05m² |
| 65mm | 65 | 135 | 195 | 20 | 65 | 12 | 18 | 135 | 0,065m² |
Let's get started with your Project
Our passionate team of experts are here to help in every step of the project. From your simple idea to realisation, we have the knowledge and experience to make it happen. Let's kick things off by a simple quote request.
- Return Grille Features:
- Zero deflection (return)
- Spacing available: 20mm, 25mm, 30mm, 40mm, 50mm, 65mm
- Curved: Concave, Convex
- Mitered convers
- Multiple ways of fastening
